Varme Water Underfloor Heating System with Thermostat in 12 Size Options

Pump Installation Guide

System Installation Guide

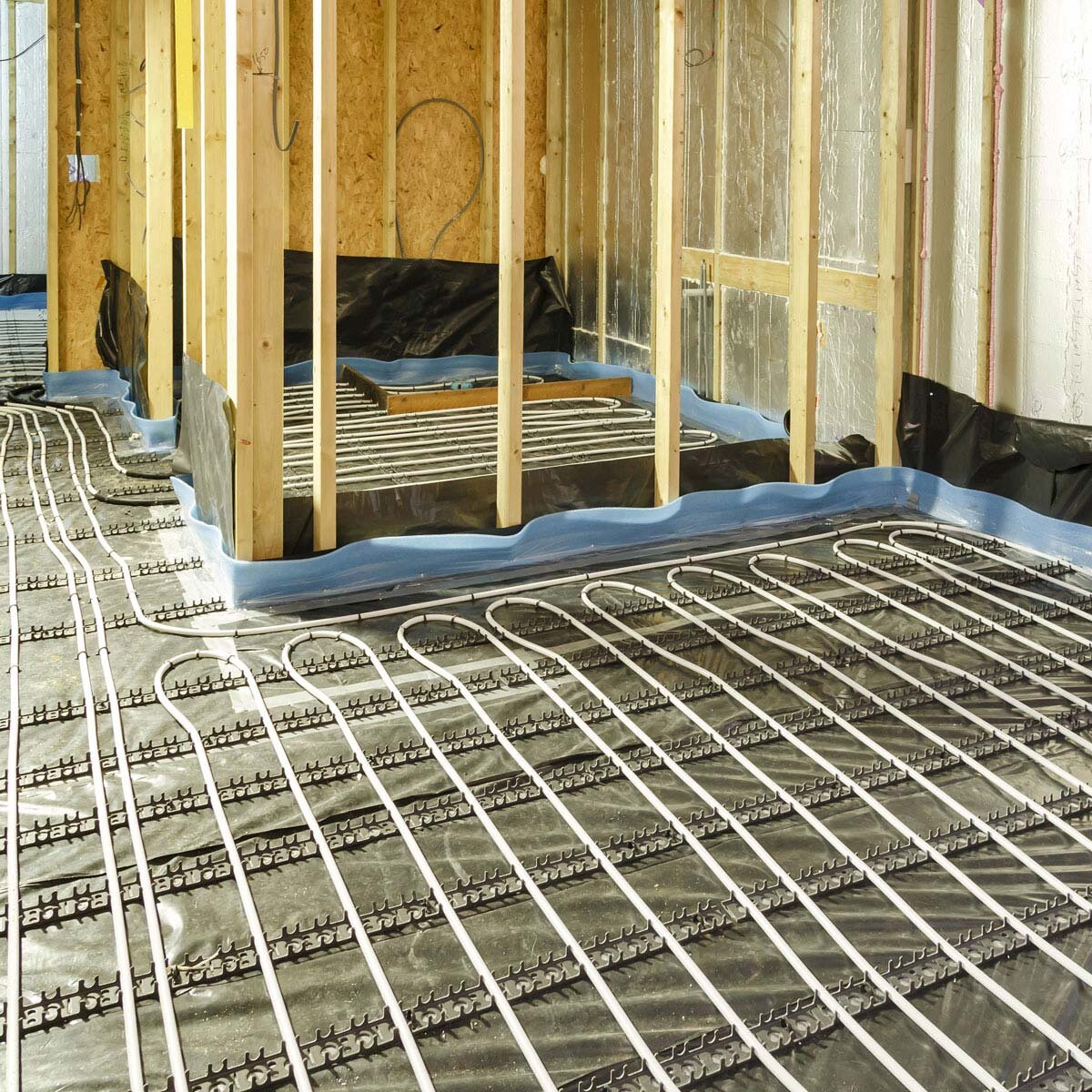

The Varme Water Underfloor Heating System utilises concealed warm water pipes in your floor to gently radiate heat evenly throughout a room, ensuring that there are no excessively hot or cold spots.

Water underfloor heating systems are perfect for both renovation and new build projects. They consist of a series of pipes that connect to your boiler and circulate warm water throughout the floor to heat the space. Alternatively, you can connect to a solar water heating system, air source or ground source heat pump.

A water underfloor heating system can sit beneath almost any type of flooring; including stone, tile, wooden or even thinly carpeted surfaces.

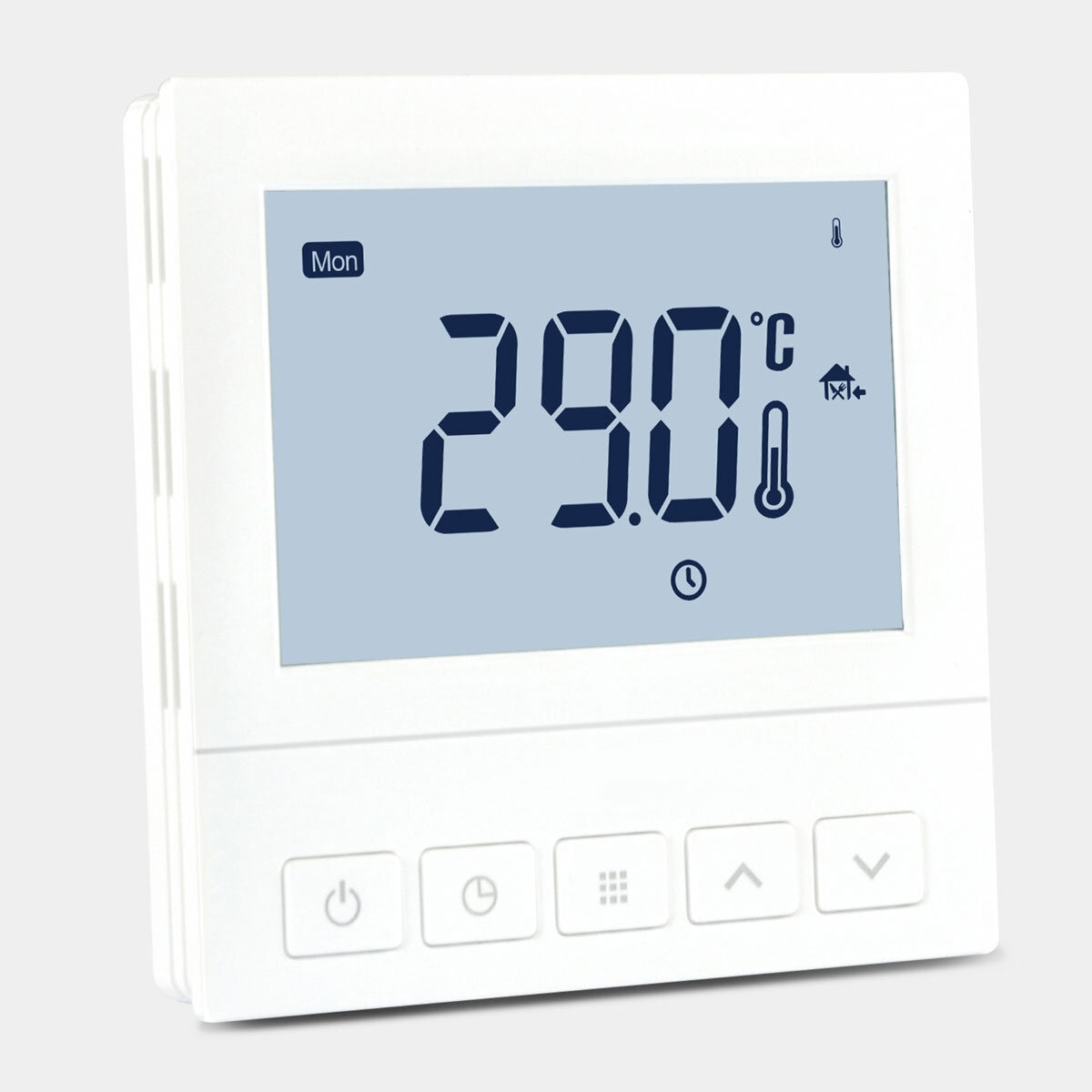

This system includes a Varme programmable thermostat featuring a large LCD display with backlight, making it easy to control your underfloor heating from the touch of a button.

Features

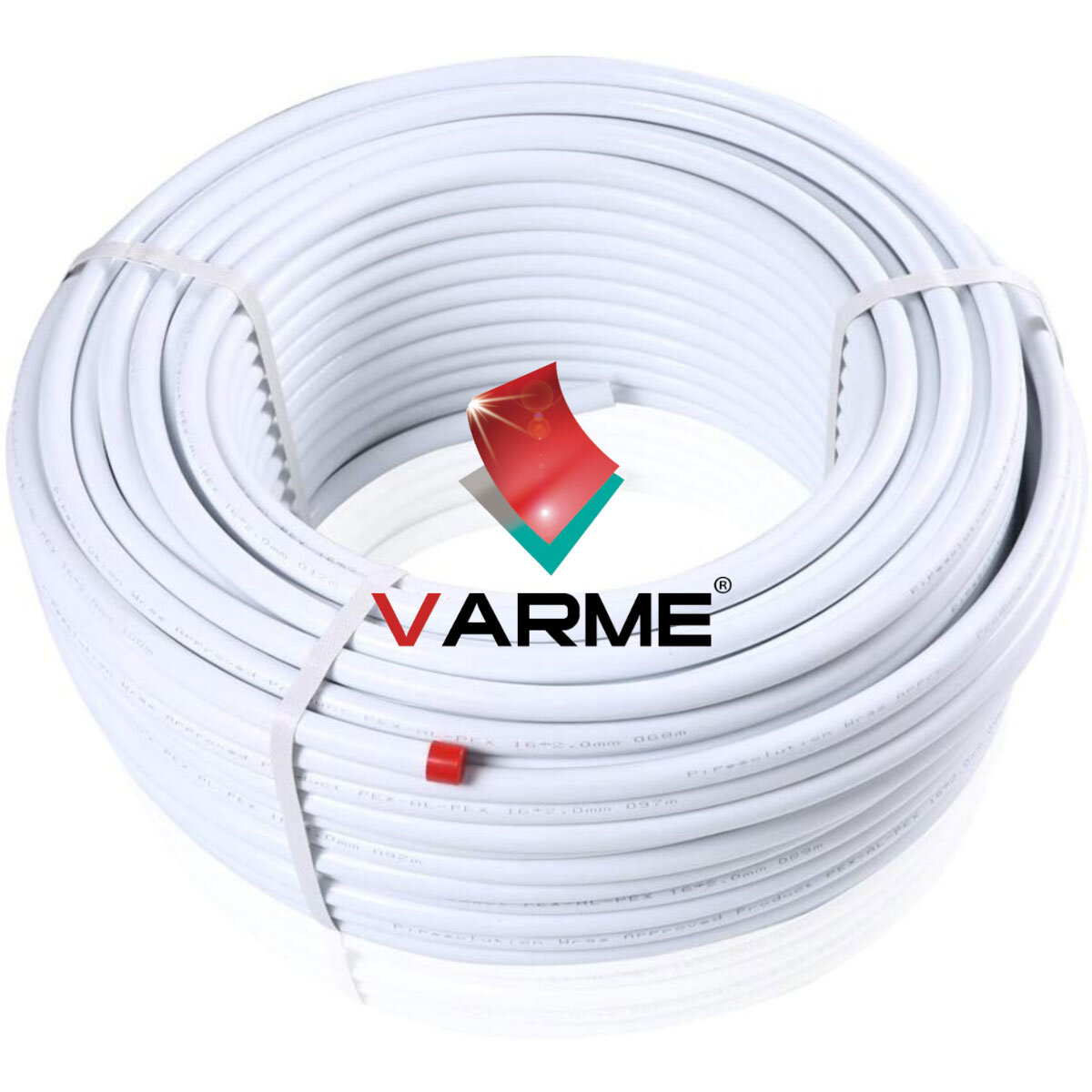

• 16mm PE-RT AL PE-RT pipes with 2mm thickness (low profile system)
• Multi-layered pipe construction which is 100% oxygen impermeable
• Suitable for renovations and new build projects
• Typical fixing methods include:

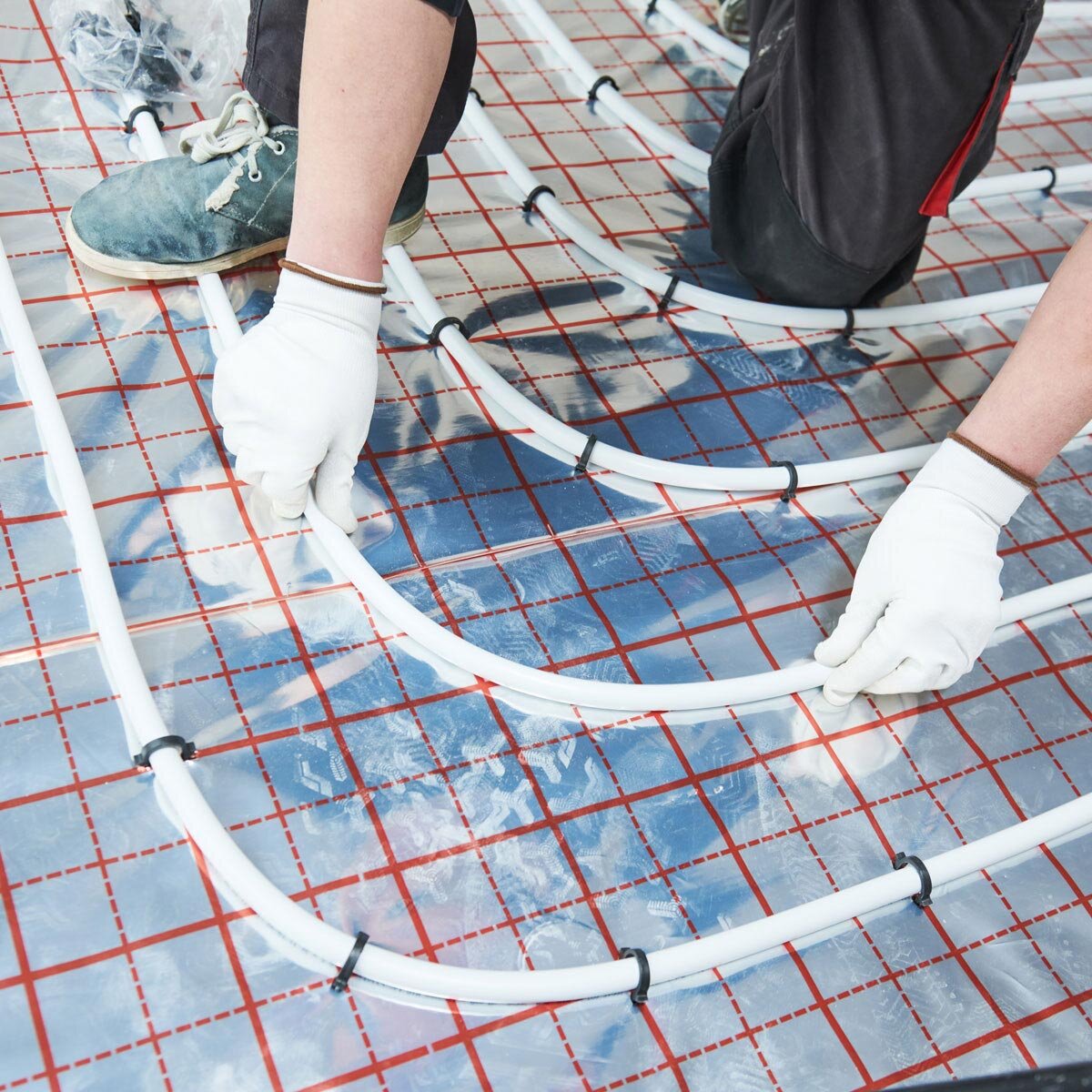

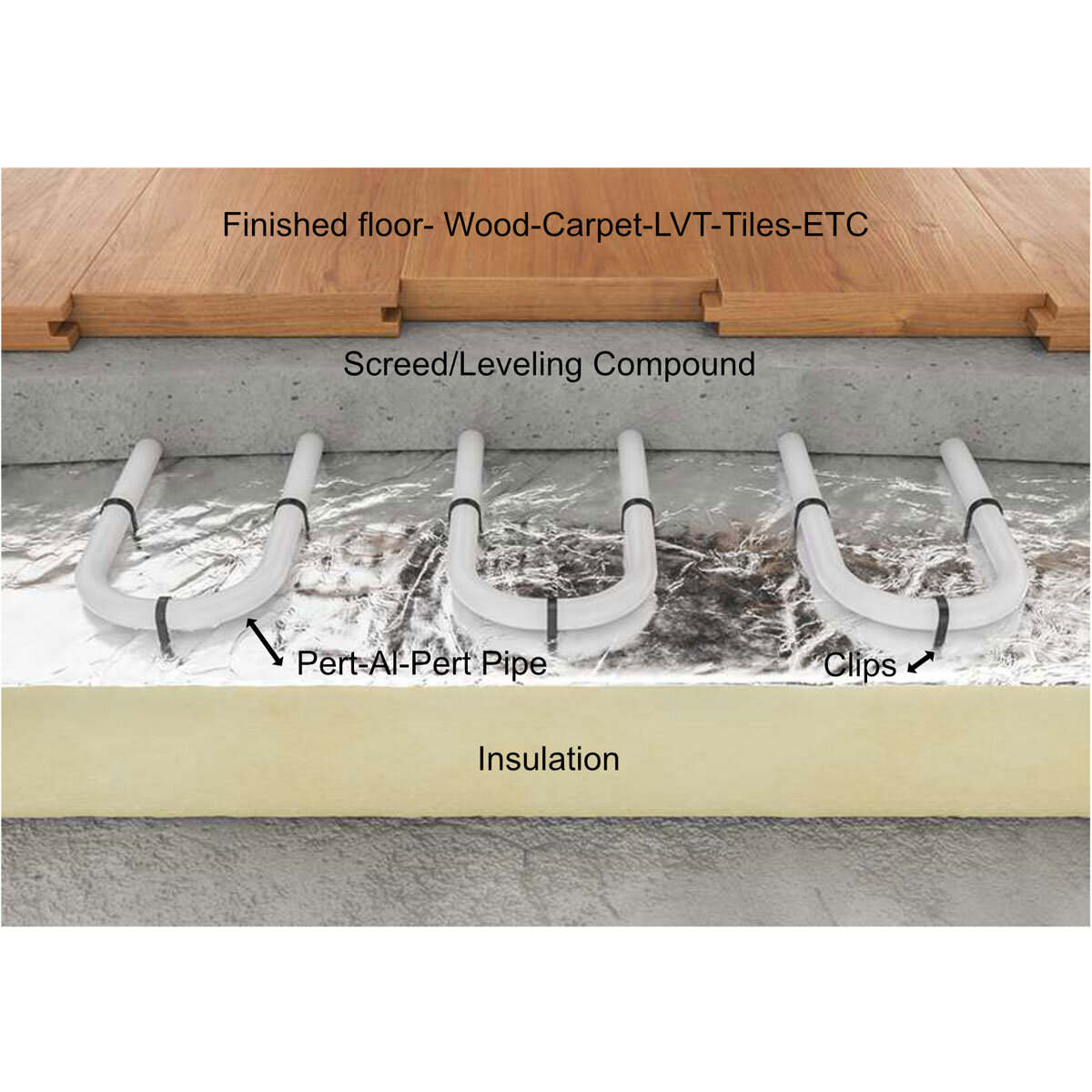

  • Under new concrete or screed floors - Pipes are encased in screed or concrete
  • Over existing floors – On any solid sub-floor (requires over fit panels)
  • Between joists or suspended floors
• Supplied with all required components for ease of installation
• Mixed temperature water control to underfloor heating systems up to 3kW
• Manufactured to the highest standards to meet all UK and EU standards
• High output A-rated pump
• Suitable for most flooring types
• Suitable for installation underneath all Golden Select flooring (a 6mm levelling compound would be required)

Specifications

• Usual Working Temperature: 82°C
• Maximum Working Temperature: 105°C
• Maximum Working Pressure: 3 bar
• Maximum Test Pressure: 10 bar
• Warranty: 25 years on the pipes and 1 year on manifolds, pump, thermostats and control

Included

• A-rated pump
• Piping
• Manifold
• Eurocons
• Edge insulation
• Pipe cutter
• Pipe reamer

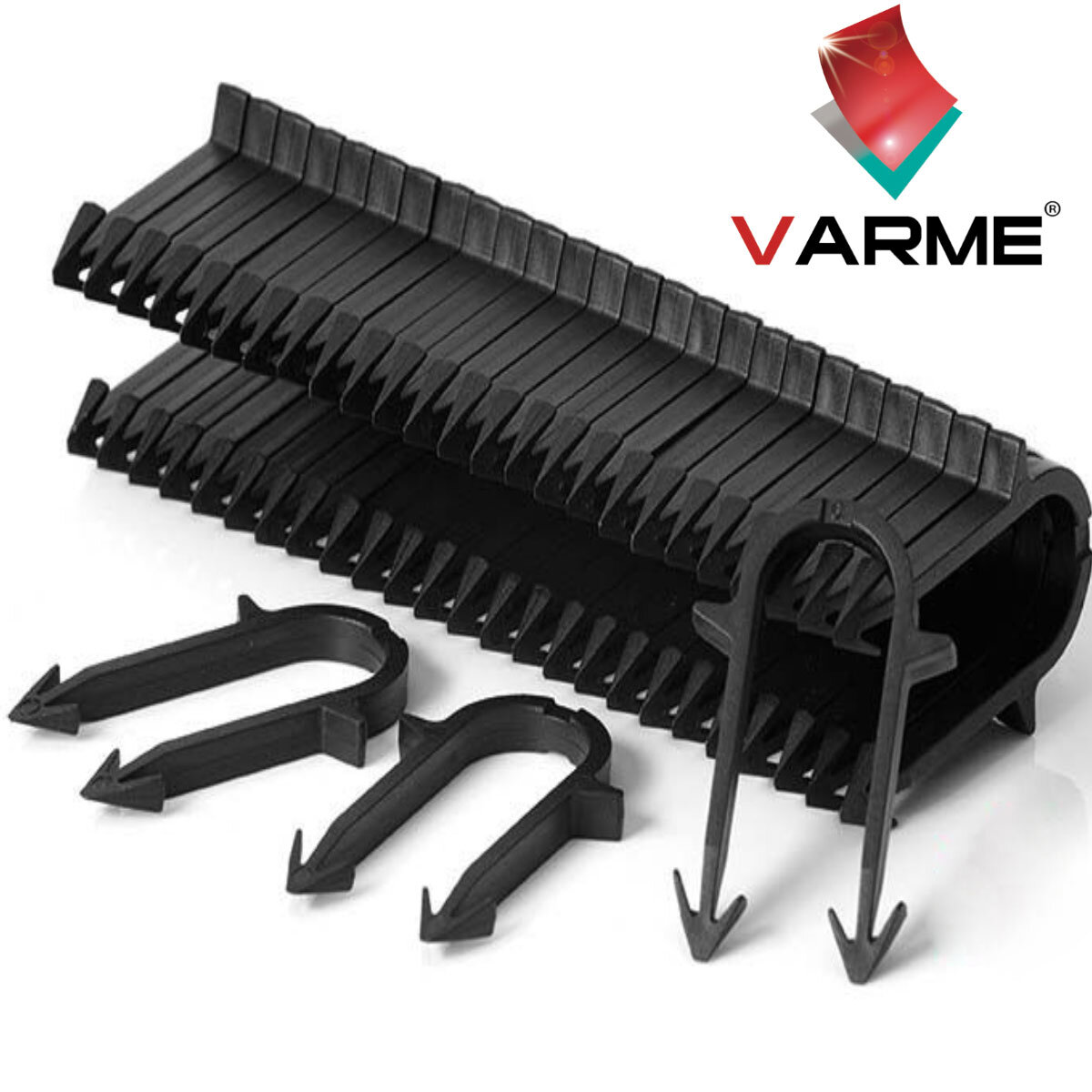

• Pipe staple clips
• Varme programmable room thermostat

Please Note: Installation should be carried out by a certified plumber/installer.
