Installed Mitsubishi Elegance Residential Air Conditioning 3.5kW Unit
Item #507418
- MSZ-AP/Y R32 Inverter Heat Pump
- Built in Plasma Quad Technology neutralises viruses, bacteria, allergens, mould and dust
- Energy efficient, ultra-quiet operation with a choice of fan speeds
- Built in Wi-Fi interface
- Double vanes for even airflow
- Refer to map for installation areas
The MSZ-AP/AY range is a wall mounted system that blends energy efficiency with a modern white design. Boasting outstanding benefits, this mid-range unit includes models that contain state-of-the-art Wi-Fi control as standard and utilises lower GWP R32 refrigerant. Built-in Wi-Fi interace enables system monitoring via the Mitsubishi Electric MELCloud app, plus voice control - compatible with Amazon Alexa and Google Assistant enabled devices.
Whats Included:
- Mitsubishi MSZ-AP/Y R32 air conditioning system
- Virtual survey
- Installation by a fully qualified F-Gas engineer
- 5-year parts warranty
- 10m of copper and cable
- Additional R32 refrigerant (where going over 7.5m)
- Condensate pumps included where required.
- Anti vibration blocks or wall brackets for outdoor unit installation
Installation Available in: 2.5kW, 3.5kW, 4.2kW, 5.0kW, 6.0kW and 7.1kW
Colours Available: White
Please note:
- A dedicated power supply is required prior to installation, this should terminate at a weatherproof rotary isolator within one metre and preferably to the right of the desired location of the outdoor unit. This will need to be done by a qualified electrician and is not included in this package.
- Please allow a 10cm space behind and to the side of the outdoor unit. Please allow for 100cm space to the front of the outdoor unit.
- The outdoor unit can be sited on rubber blocks at ground level or on brackets at a maximum height of 3 metres. Rubber blocks or brackets are supplied where required, within this package.
- The indoor and outdoor units must be within 10 metres of each other.
- This package does not include removal of old systems or existing pipework. This will need to be done before delivery.
| Remote Control | Yes |

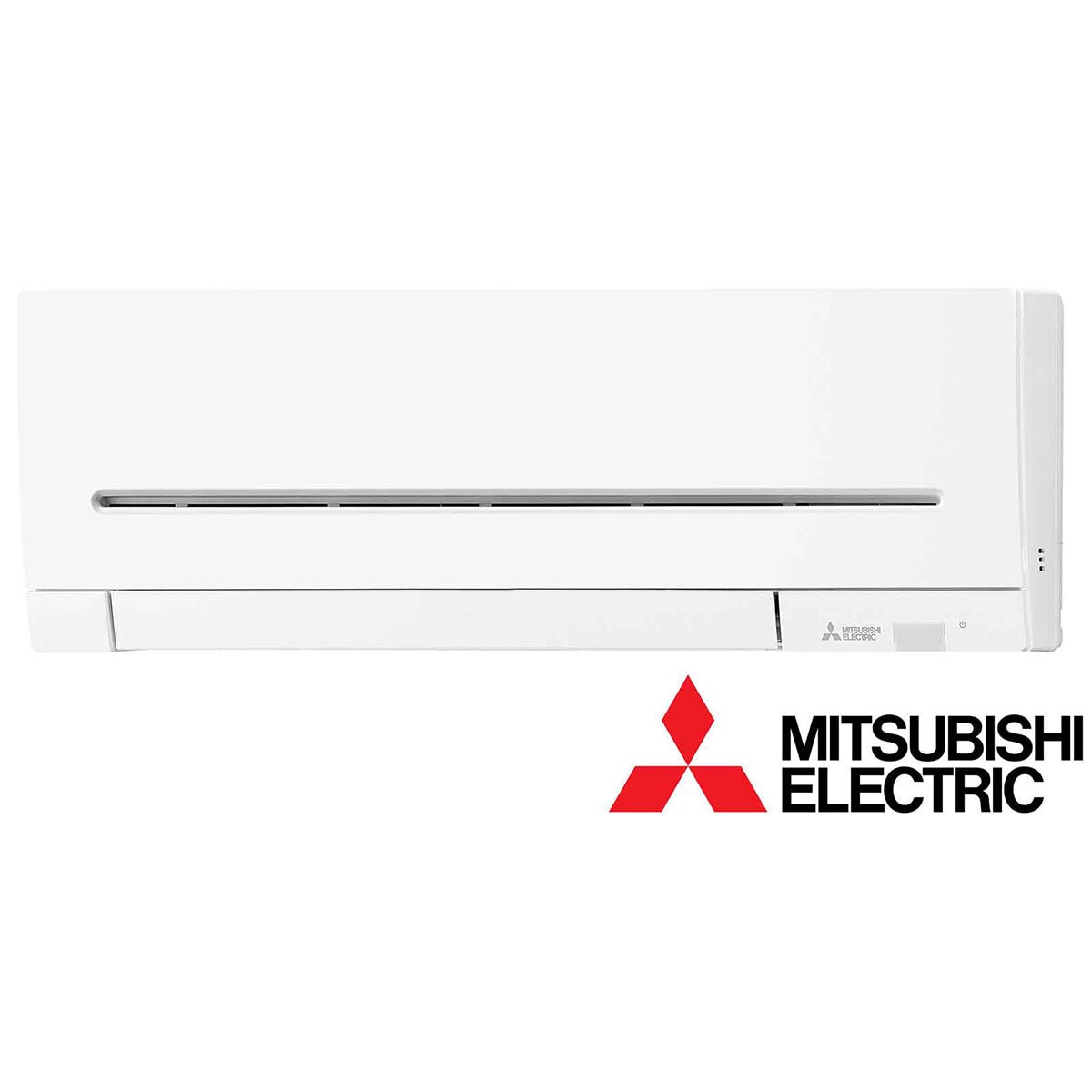

| Indoor Unit | W 760 x D 178 x H 250mm |
| Wi-Fi | Wi-Fi Control through Mitsubishi Electric MELCloud app, Amazon Alexa and Google Assistant |
| Voice Controlled | MELCloud app, Amazon Alexa and Google Assistant |
| Sound Level | 50 / 49d(BA) sound pressure |
| Timer Mode | 7 day timer with 4 different actions per day |
| Operating Range | - 21 to +46 (degrees centigrade) |
| Number of speeds | 5 |
| Smartphone App | MELCloud |
| Colour | White |
| Brand | Mitsubishi |
| Energy Rating | A++ - A+++ (Cooling) A+ - A++ (Heating) |
| Type | Single System |
|
