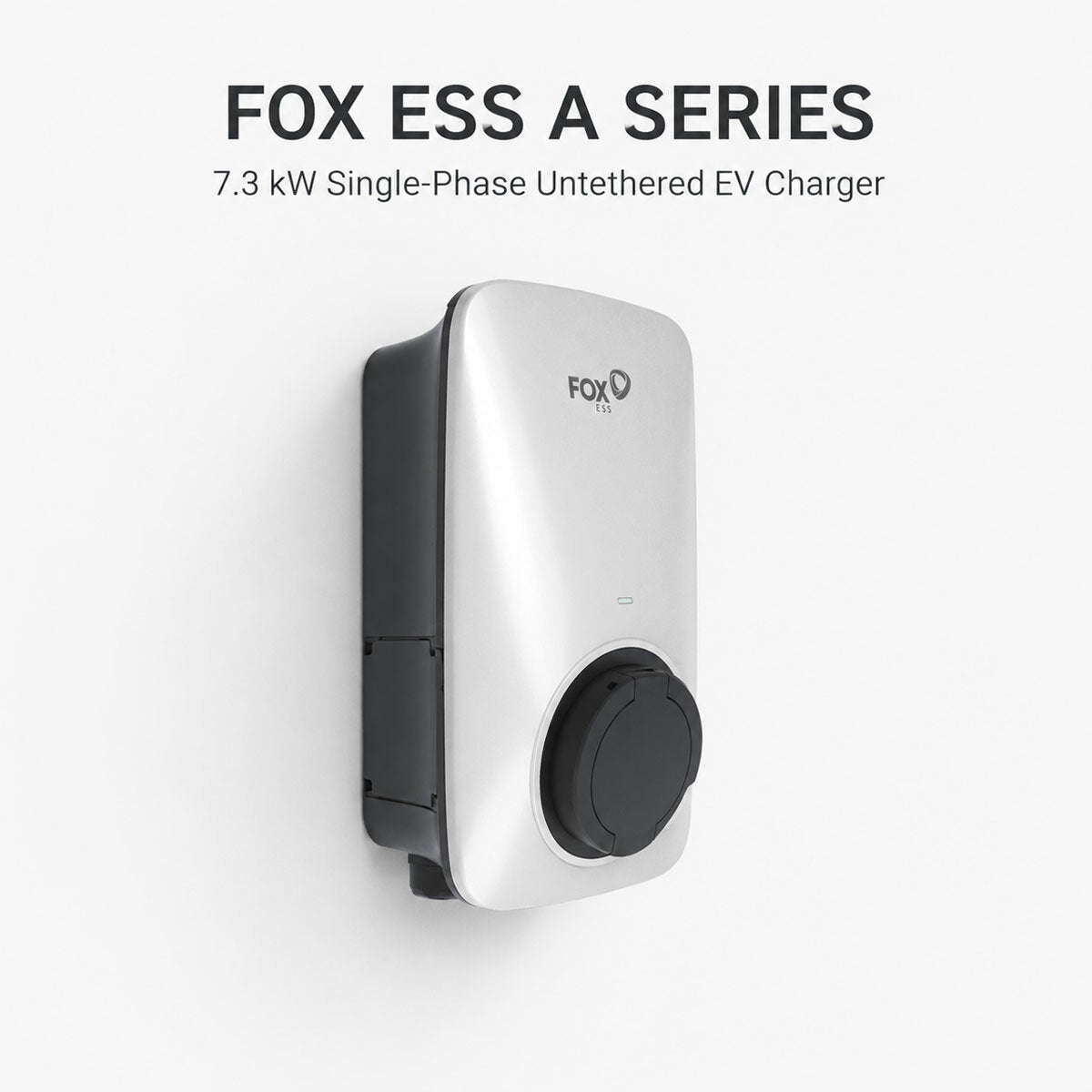

Fresh Electrical Fox ESS A Series 7.3 kW Single-Phase Untethered Smart EV Charger in White, Fully Installed or Delivered

Smart EV charging for the modern home

The ESS A Series 7.3 kW Smart EV Charger provides convenient, intelligent home charging in a compact and modern wall-mounted unit. Finished in white and supplied as an untethered charger, the A Series allows you to use your own compatible Type 2 charging cable, keeping the installation neat when the charger is not in use.

Designed for standard UK single-phase supplies, the charger delivers up to 7.3 kW charging power with a rated output current of 32 A.

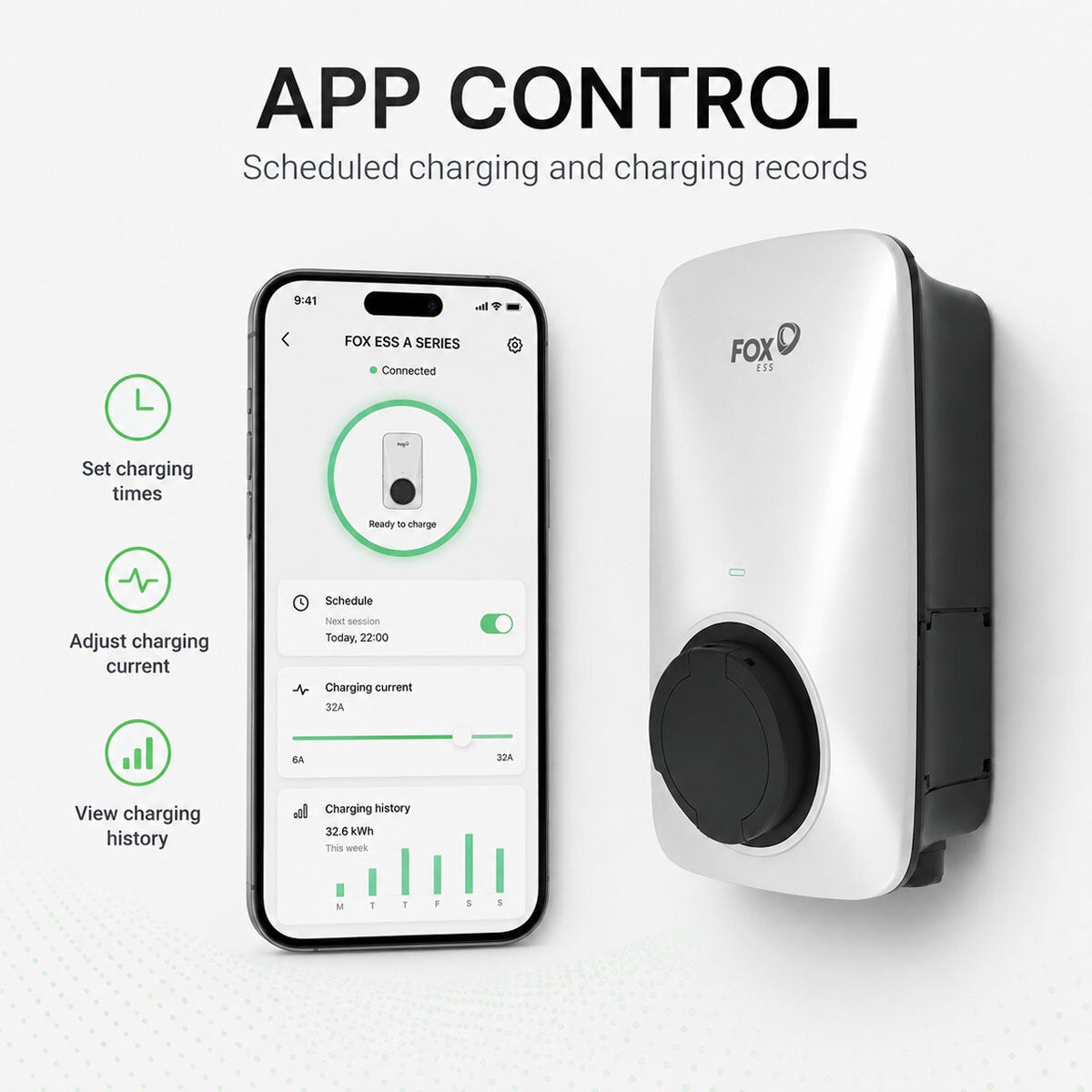

Charge when it suits you

Scheduled charging allows you to choose when your vehicle charges. This makes it easier to plan charging around your normal routine and, where applicable, make use of off-peak or time-of-use electricity tariffs. Charging can be managed through the app, giving you access to charging controls and charging records from a compatible smartphone.


Make better use of your solar generation

For homes with a compatible solar PV system and suitable system configuration, the Fox ESS A Series can direct available surplus solar generation towards EV charging.

Rather than automatically exporting all unused solar generation to the grid, available surplus energy can be used to help charge your electric vehicle.

The manufacturer specifically lists renewable energy compatibility and direct use of surplus solar power for EV charging as A Series features.


Dynamic load balancing

The A Series supports dynamic load balancing, helping manage EV charging alongside the electrical demand from the rest of the property.

When correctly configured as part of the installation, charging demand can be managed in response to household electrical load, helping keep the total demand within the configured limits of the property's electricity supply.

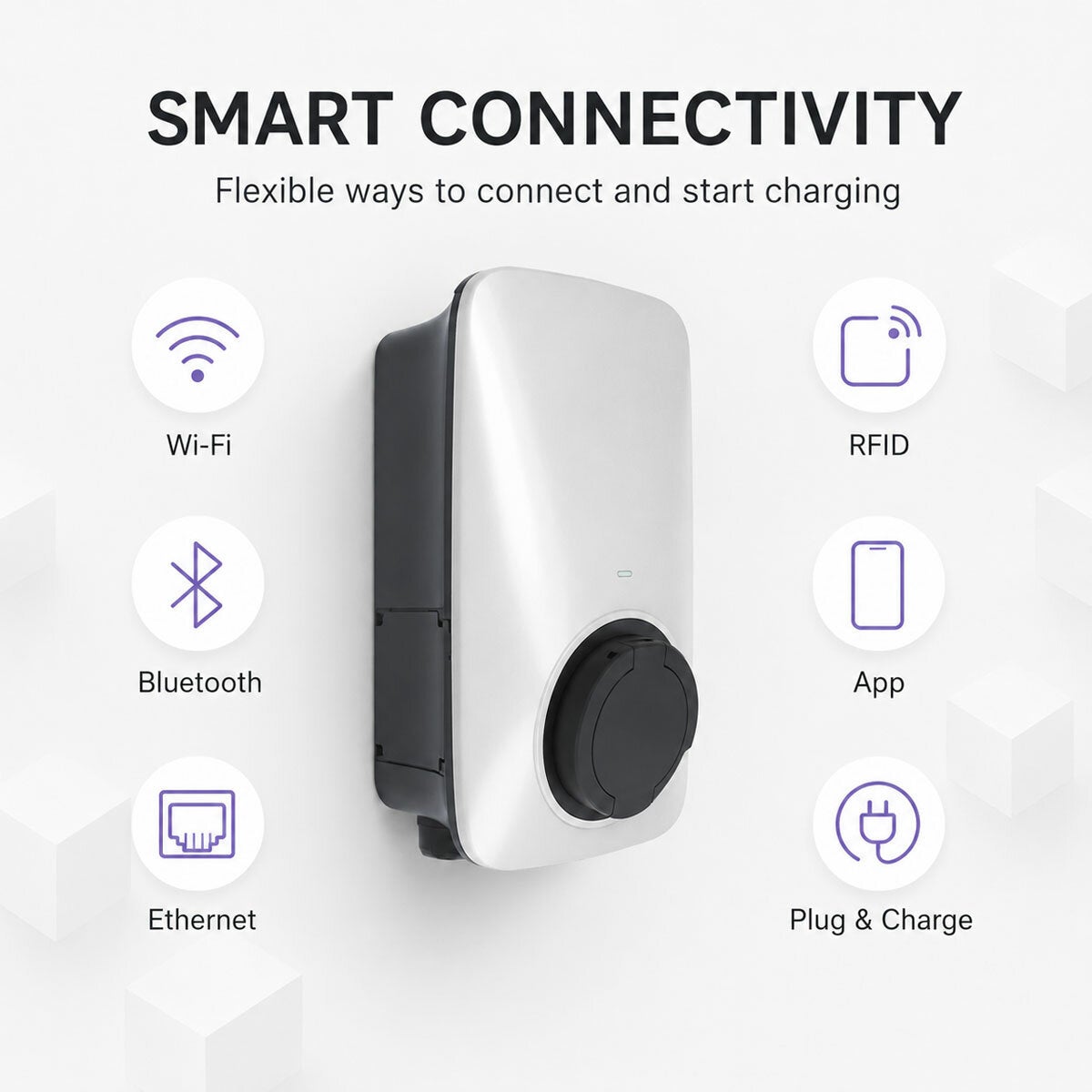

Flexible ways to connect and charge

The A Series several ways to manage and start charging sessions, including:

• App control
• RFID card
• Plug & Charge
• Bluetooth
• 2.4 GHz Wi-Fi
• Ethernet connection

The charger also supports OCPP 1.6 JSON or OCPP 2.0.1, providing additional flexibility for compatible charging management systems.

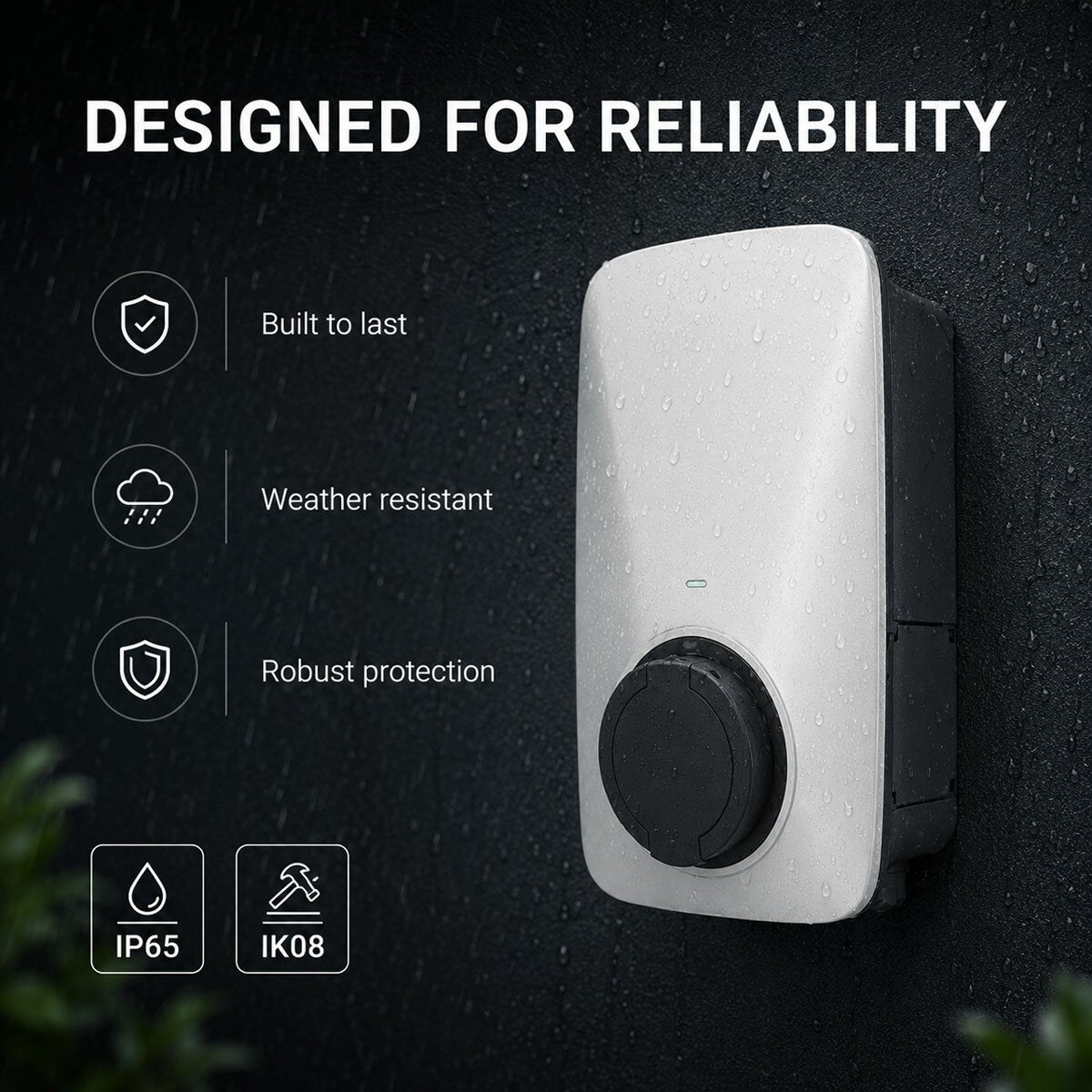

Designed for everyday use

• The A Series is designed for reliable everyday operation.
• The datasheet specifies:
• IP65 protection for the charger body
• IP55 protection for the socket
• IK08 impact protection
• Operating temperature range from -30°C to +50°C
• Salt-mist-resistant and UV-resistant treatment

Built-in protection against overvoltage, undervoltage, overcurrent, leakage current, ground faults, surge, overtemperature and tampering. Its compact format also helps keep the installation discreet, with the socket version measuring approximately 320 × 190 × 144.5 mm.


Key features

• 7.3 kW single-phase EV charging
• Untethered Type 2 socket design
• Scheduled charging through the app
• Compatible with surplus solar charging
• Dynamic load balancing
• App, RFID and Plug & Charge start options
• Wi-Fi, Bluetooth and Ethernet connectivity
• Robust IP65 body and IK08 impact protection
• Compact wall-mounted design
• Suitable for indoor or outdoor installation
• Technical specification details
• Charger type: Smart EV charger
• Colour: White
• Connection: Untethered Type 2 socket
• Maximum charging power: 7.3 kW
• Electrical supply: Single-phase
• Rated voltage: 230 V ±20%
• Rated current: 32 A
• Connectivity: Bluetooth, Wi-Fi and Ethernet
• Start modes: App, RFID and Plug & Charge
• Solar compatibility: Surplus solar charging supported
• Load management: Dynamic load balancing
• OCPP: OCPP 1.6 JSON or OCPP 2.0.1
• Body protection IP65
• Socket protection: IP55
• Impact protection: IK08
• Operating temperature: -30°C to +50°C
• Dimensions: Approx. 320 × 190 × 144.5 mm
• Installation: Wall-mounted or post-mounted
