Generate electricity from daylight

A solar photovoltaic system converts daylight into electricity that can be used within the property. Solar panels continue to generate in daylight conditions even when there is no direct sunshine.

Generation depends on factors including array size, orientation, roof pitch, shading, geographical location and prevailing weather conditions.


Choose your system size

The final number and position of the panels are subject to technical survey, available roof space, roof condition, shading, electrical suitability and any applicable planning or grid-connection requirements.


System components

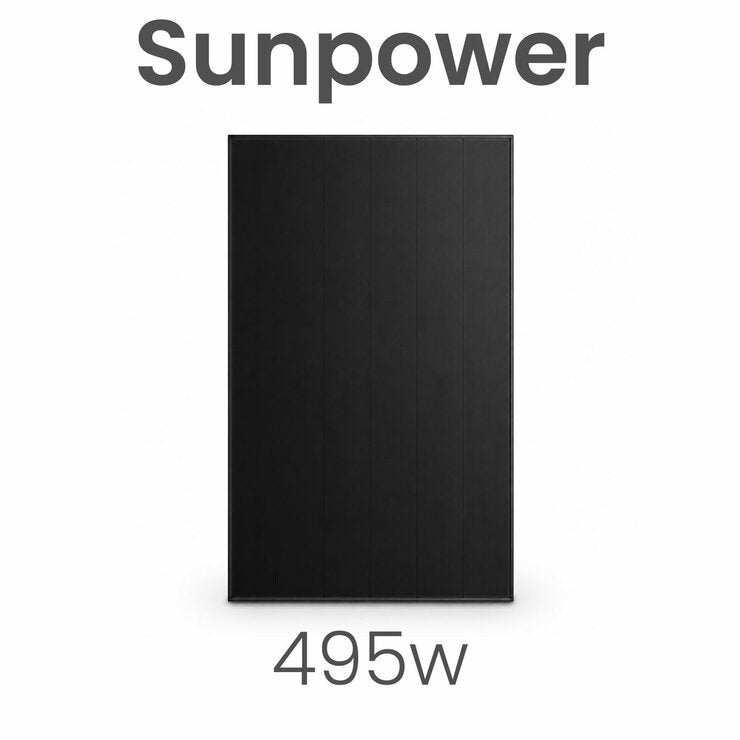

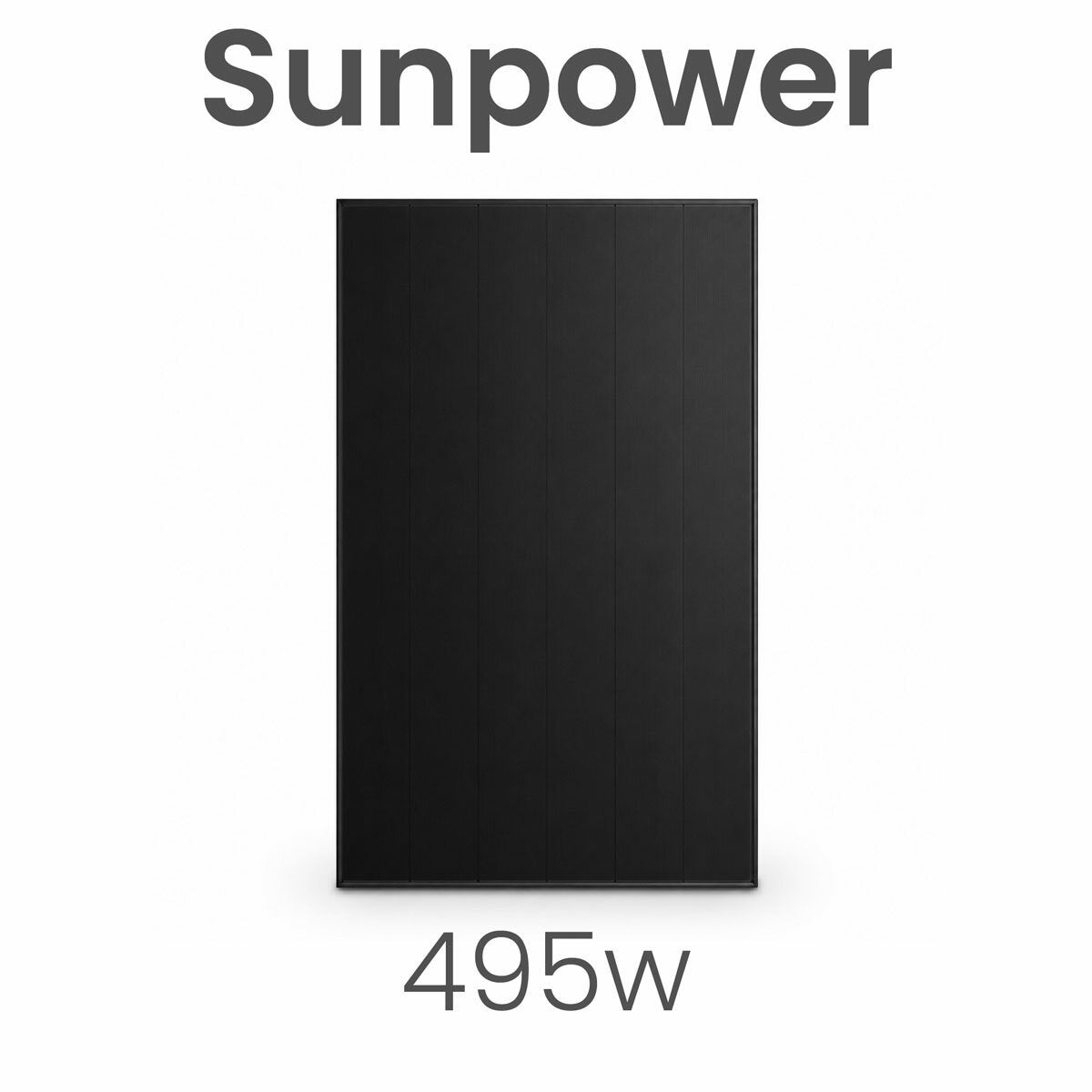

SunPower M Class 495W solar panels

The system uses SunPower M Class 495W solar panels designed for residential solar installations.

• 495W nominal output per panel
• 24.3% panel efficiency
• N-type shingled back-contact solar-cell technology
• Framed glass-glass construction and bifacial design
• Black anodised aluminium frame and IP68 junction box
• Class A fire rating
• Panel dimensions: 1,800 x 1,134 x 30mm; weight: 23.5kg
• 40-year product, power and service warranty, subject to the manufacturer’s terms
• Minimum warranted output of 99% after year one and maximum annual degradation of 0.25%

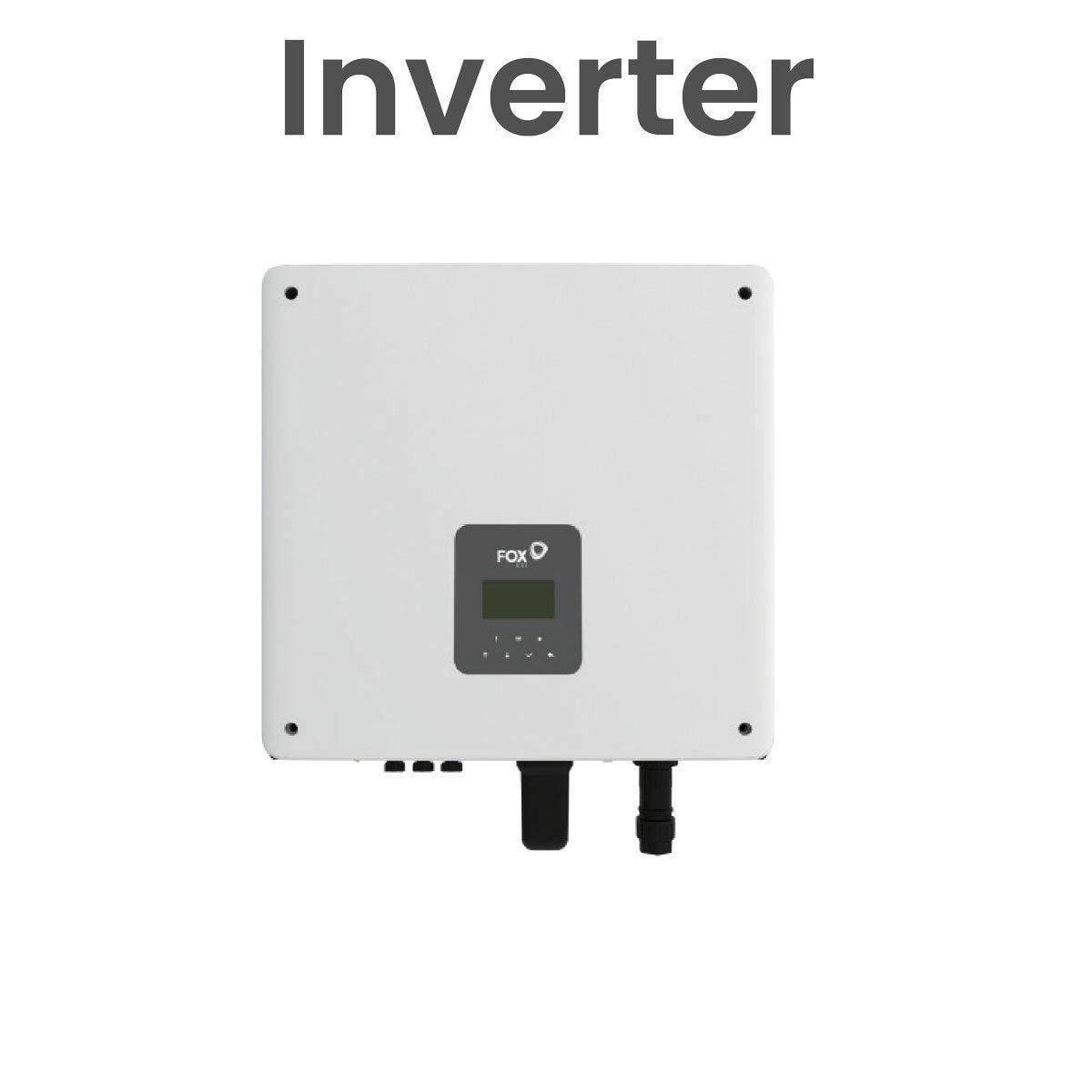

A Fox inverter converts the electricity generated by the solar panels into electricity suitable for use within the property. The appropriate model will be selected during the system design. Compatible monitoring is available through FoxCloud.


Solar-panel mounting and bird protection

The package includes a specialist roof-mounting system selected for the property and bird mesh fitted as standard around the completed solar-panel array. The exact mounting equipment and panel layout will be confirmed following the technical survey.


Benefits

Generate electricity from daylight. Solar PV converts daylight into electricity for use within the property.

Use electricity generated at home. Electricity generated by the panels can reduce the amount purchased from the grid.

Monitor generation. FoxCloud monitoring provides access to compatible system-generation and performance information.

Reduce operational carbon emissions. Generating electricity from solar energy can reduce reliance on grid electricity and its associated operational emissions.


What is included?

• SunPower 495W solar panels in the quantity selected
• Suitable Fox inverter
• Specialist roof-mounting system
• Bird mesh fitted around the solar-panel array
• Bespoke system design and technical assessment
• Standard scaffolding provision
• Electrical equipment, isolators, cabling and protective devices required for a standard installation
• Installation, commissioning and testing by a qualified solar and electrical team
• MCS-compliant installation and certification
• Customer handover documentation and applicable manufacturer warranty information
• Fresh Solar installation warranty


Standard installation

• Solar panels fitted across a maximum of two roof elevations
• Scaffolding for a maximum of one elevation and a maximum scaffold height of two storeys
• Bird mesh fitted as standard around the solar-panel array
• Fox inverter installed in a suitable location
• Standard cable routes, electrical protection, isolators and commissioning
• Suitable access to the roof, electrical supply and installation locations
• Access to the property’s Wi-Fi network where required for monitoring

Additional costs may apply where the technical survey identifies non-standard scaffolding, roofing work, electrical upgrades, extended cable routes, difficult access or other work outside the standard installation. Any additional cost will be explained and agreed before installation proceeds.


Ordering and installation process

1. Select the package: Choose the required panel option using the Solar Panel Configurator and the Costco product dropdown.
2. Initial contact: Fresh Solar will confirm the installation address and request relevant information, including a recent electricity bill.
3. Technical assessment: Fresh Solar will assess the roof, electrical installation and proposed inverter location. An on-site survey will be arranged where required.
4. Bespoke system design: The design team will prepare the proposed panel layout, equipment selection and electrical specification.
5. Confirm suitability: Fresh Solar will confirm whether the selected package is suitable and explain any required change or additional cost before the customer proceeds.
6. Grid-connection application: Where required, Fresh Solar will apply to the relevant Distribution Network Operator. Network approval times may affect the installation date.
7. Installation and commissioning: The equipment will be installed, connected, configured, commissioned and tested.
8. Customer handover: Fresh Solar will provide the relevant manuals, warranty information, operating guidance and certification following completion.


Important information

• Battery storage is not included with this listing.
• The final solar-panel layout and complete system design are subject to technical survey.
• Generation, storage performance and financial savings cannot be guaranteed.

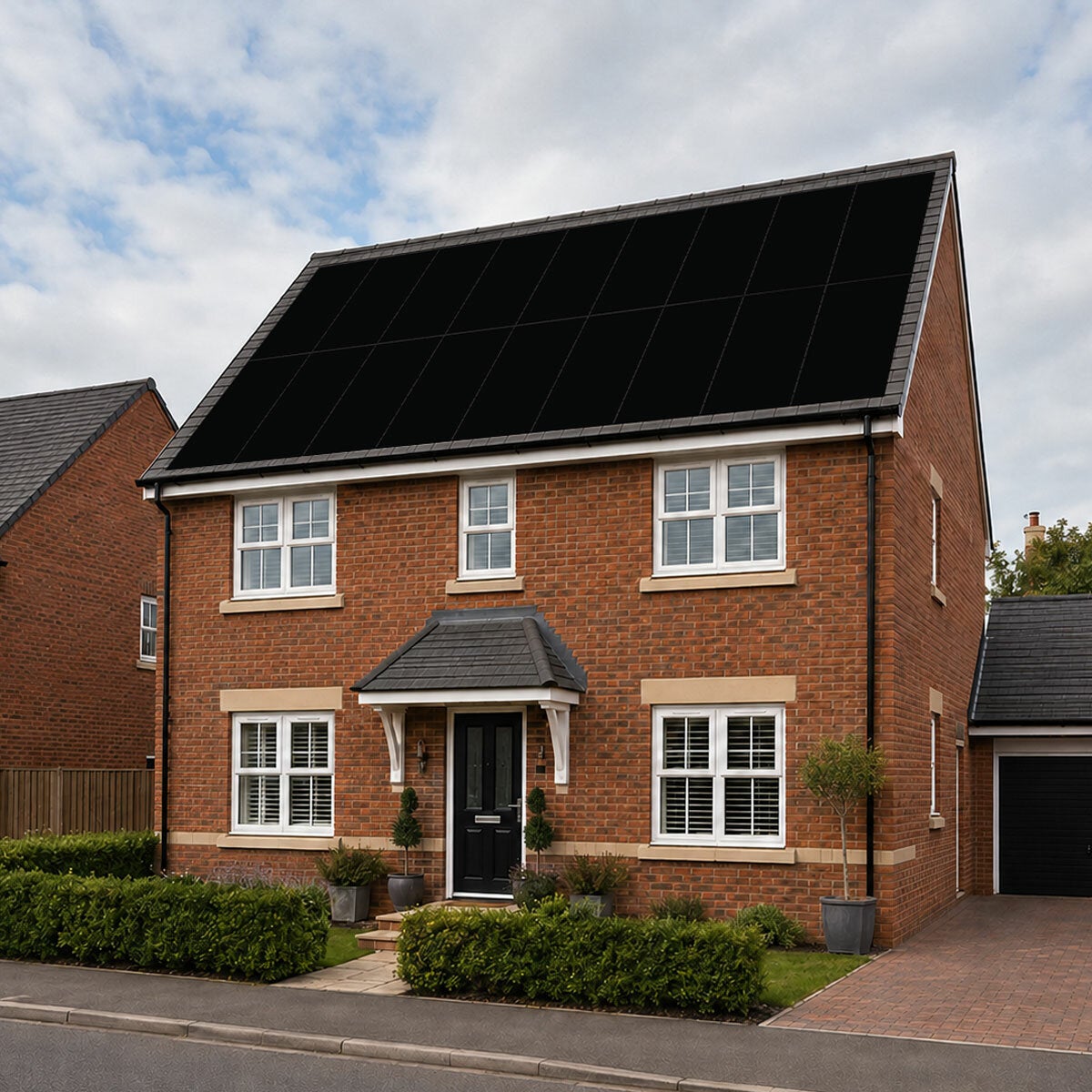

• Product images are illustrative. The relevant house images show the selected panel quantity but do not determine the final layout for an individual property.
• Wi-Fi and a compatible device are required for online monitoring.
• Manufacturer warranties are subject to their applicable terms, conditions, registration and connectivity requirements.


Documents to attach

• SunPower M Class 490-505W panel datasheet
• Fox H1(G2)/AC1(G2) inverter datasheet
