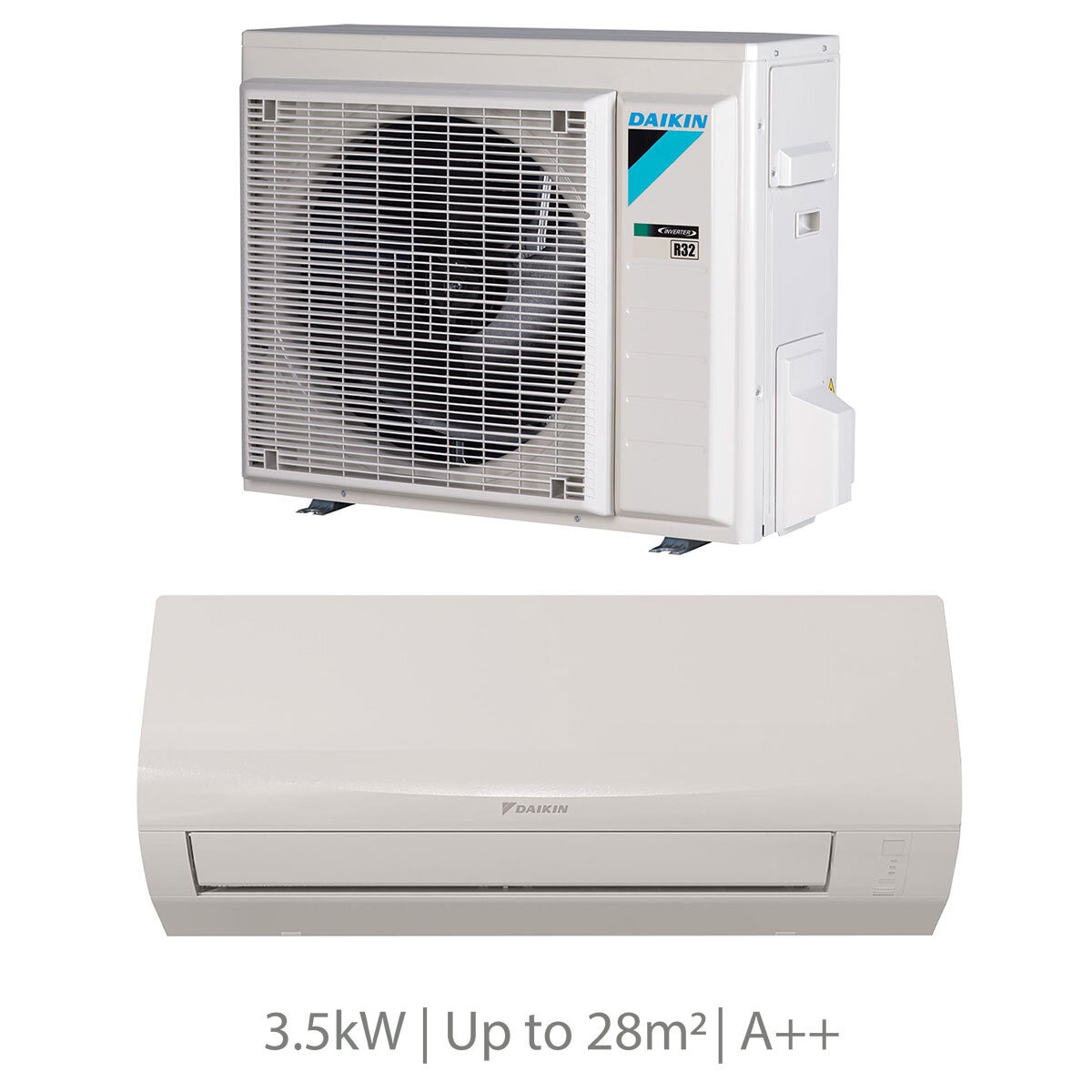

Installed Daikin Sensira 3.5kW Single Split Air Conditioning Unit for Domestic and Commercial Use

• Installation Guide

• Datasheet

• Indoor Dimensions

• Outdoor Dimensions

The Sensira range by Daikin is a great all round performer, with seasonal efficiency values of A++ in cooling and A+ in heating. These highly efficient systems can both heat and cool a space with ease. Made to be very discreet with a compact, space-saving design, the Sensira is great for many different applications including bedrooms, garden cabins, home offices, garage conversions and many more.

All systems are installed by fully qualified F-Gas registered engineers. A 16 amp power supply must be installed at the location of the outdoor unit prior to installation to enable the engineer a point to wire into (please see the Installation Guide).

The Daikin Sensira range is equipped with many different functions to enhance the environment of any living or working space.

Super Compact Design

The Sensira 3.5kW has a width of just 77cm, allowing for more installation possibilities by reducing the space required in your home.

Whisper Silent

The Sensira indoor unit operating noise has been designed to be as quiet as possible. In fact, the ‘Silent’ button on the remote control lowers the operation sound of the indoor unit to 20dB(A) for a comfortable night's sleep.

Different Modes

• Econo Mode - Decreases power use so that other appliances that require larger consumption can be used
• Comfort Mode - Guarantees draught free operation by preventing the warm or cold air being directly blown on to the body
• Powerful Mode - Can be selected for rapid heating or cooling

Features

• Vertical Auto Swing - Automatic vertical moving of the air discharge flaps for efficient air and temperature distribution throughout the room
• 5-Step Fan Speed Adjustment - Allows five different fan speed settings
• Air Filtration - Removes airborne dust particles to ensure steady supply of clean air
• Energy Saving in Standby Mode - Current consumption is reduced by up to 80% when operating on standby
• Auto Fan Speed - Automatically selects the necessary fan speed to reach or maintain the set temperature
• 24-hour Timer- Can be set to start operation at any time in a 24-hour period
• Infrared Remote Control - Starts, stops and regulates the air conditioner from a distance.

Package Includes

• Daikin Sensira 3.5kW FTXF35D/RXF35D air conditioner
• Virtual survey
• Installation by a fully Qualified F-Gas engineer
• 15m of copper and cable
• Additional R32 refrigerant (where going over 7.5m)
• Condensate pumps included where required

Multi-room air conditoning systems are also available, to find out more, click here.

Specification

• Type: Single unit system
• Room Size: Maximum 28m²
• Operating Mode: Heating, Cooling, Dry, Fan Only
• Refrigerant Type: R32
• SEER: 6.5
• Energy Label: A++ (cooling) A+ (heating)
• Warranty: 5 year parts warranty (subject to servicing the product every year)

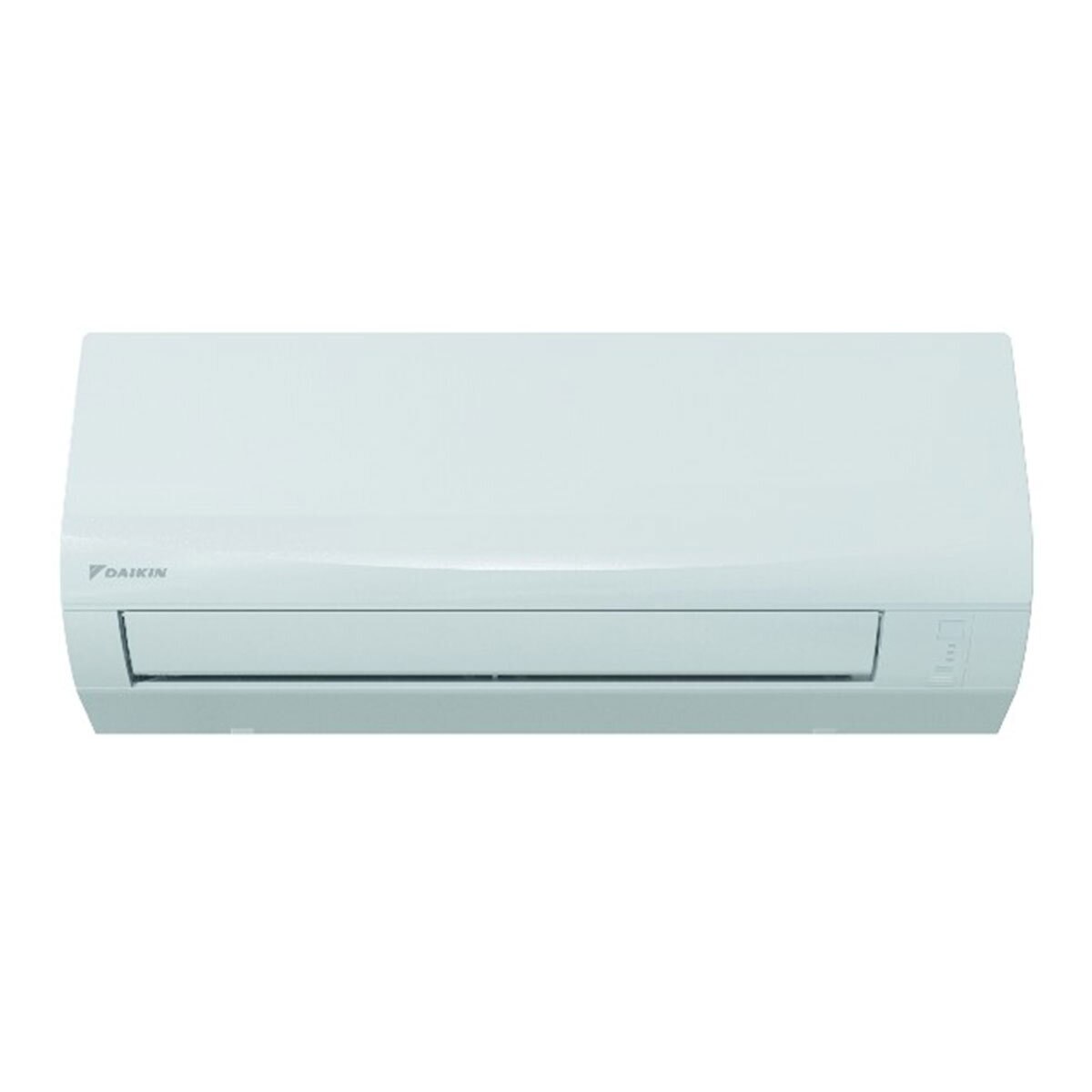

Indoor Unit

• Cooling Capacity (kW): 3.5
• Heating Capacity (kW): 2.6
• Sound Level (High/Low/Silent) dBA: 43/27/20
• Dimensions: H 28.6 x W 77.0 x D 22.5 cm
• Weight: 8.5kg

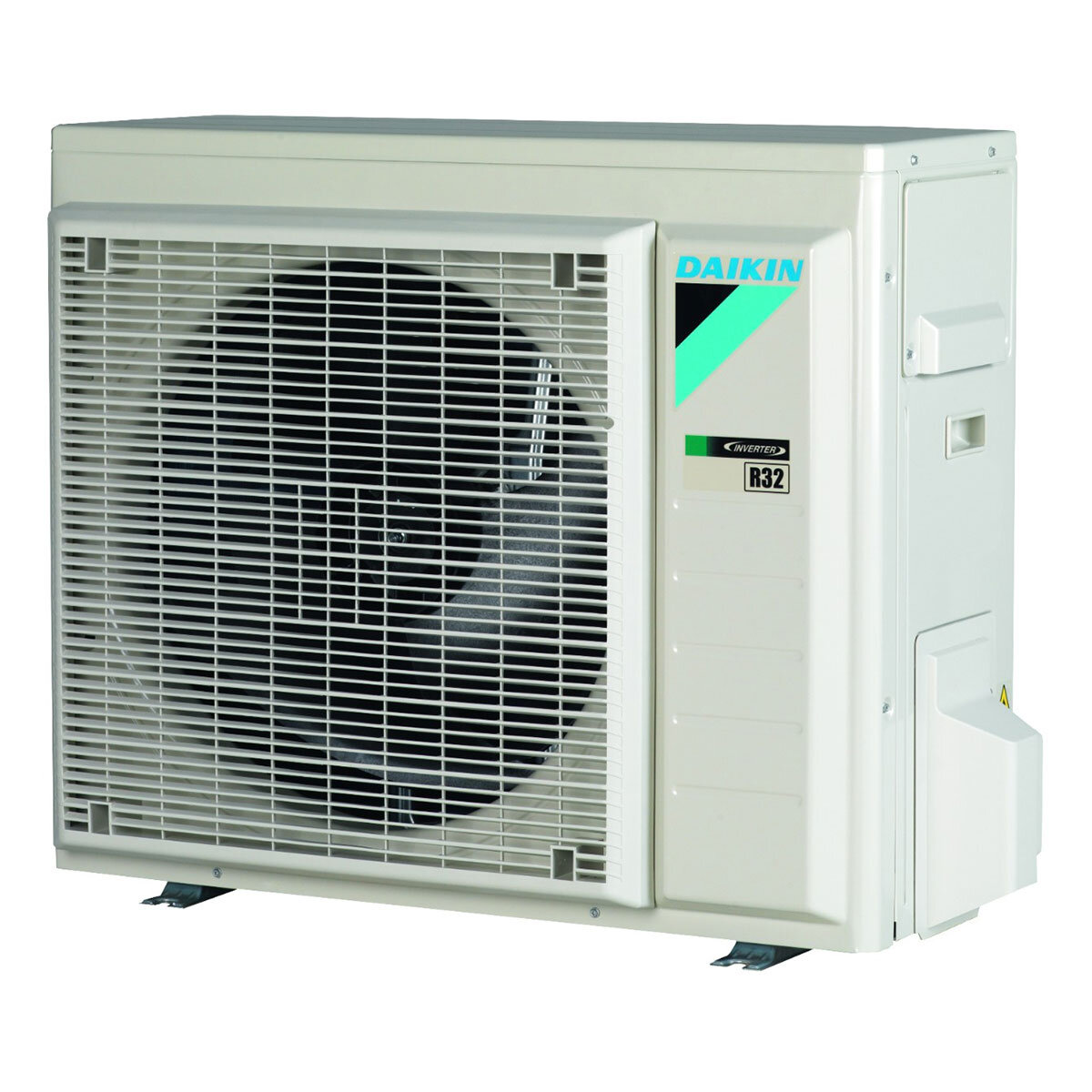

Outdoor Unit

• Dimensions: H 55.0 x W 65.8 x D 27.5 cm
• Weight: 26kg

Please note

•  A 16-amp power supply, terminating at a weatherproof rotary isolator within one metre and preferably to the right of the desired location of the outdoor unit should be installed. This will need to be done by a qualified electrician and is not included in this package.
• Please allow a 10cm space behind and to the side of the outdoor unit. Please allow for 100cm space to the front of the outdoor unit.
• The outdoor unit can be sited on rubber blocks at ground level or on brackets at a maximum height of 3 metres. Rubber blocks or brackets are supplied where required, within this package.
• The indoor and outdoor units must be within 15 metres of each other.
• This package does not include removal of old systems or existing pipework. This will need to be done before delivery.
